We build your NMR probe
NMR SERVICE develops customised solid-state NMR probes for any magnet/cryostat type and size including wide- and standard/narrow-bore superconducting magnets, electromagnets, liquid Helium/Nitrogen or cryogen-free cryostat systems. Our strong expertise also lies with low-temperature NMR probes down to liquid Helium temperatures for any magnet/cryostat system. Our high-temperature probes reach up to 800°C. Furthermore, we build customised MAS probes including LED MAS applications. We are happy to discuss technical aspects with you in person, virtually, or via email. Contact
(extlink: https://eprobe.tech/ text: Please visit ePROBE for battery analysis technology solutions including probes, hardware, consultancy, and in situ/operando NMR accessories for solid-state/materials chemistry and battery research.)

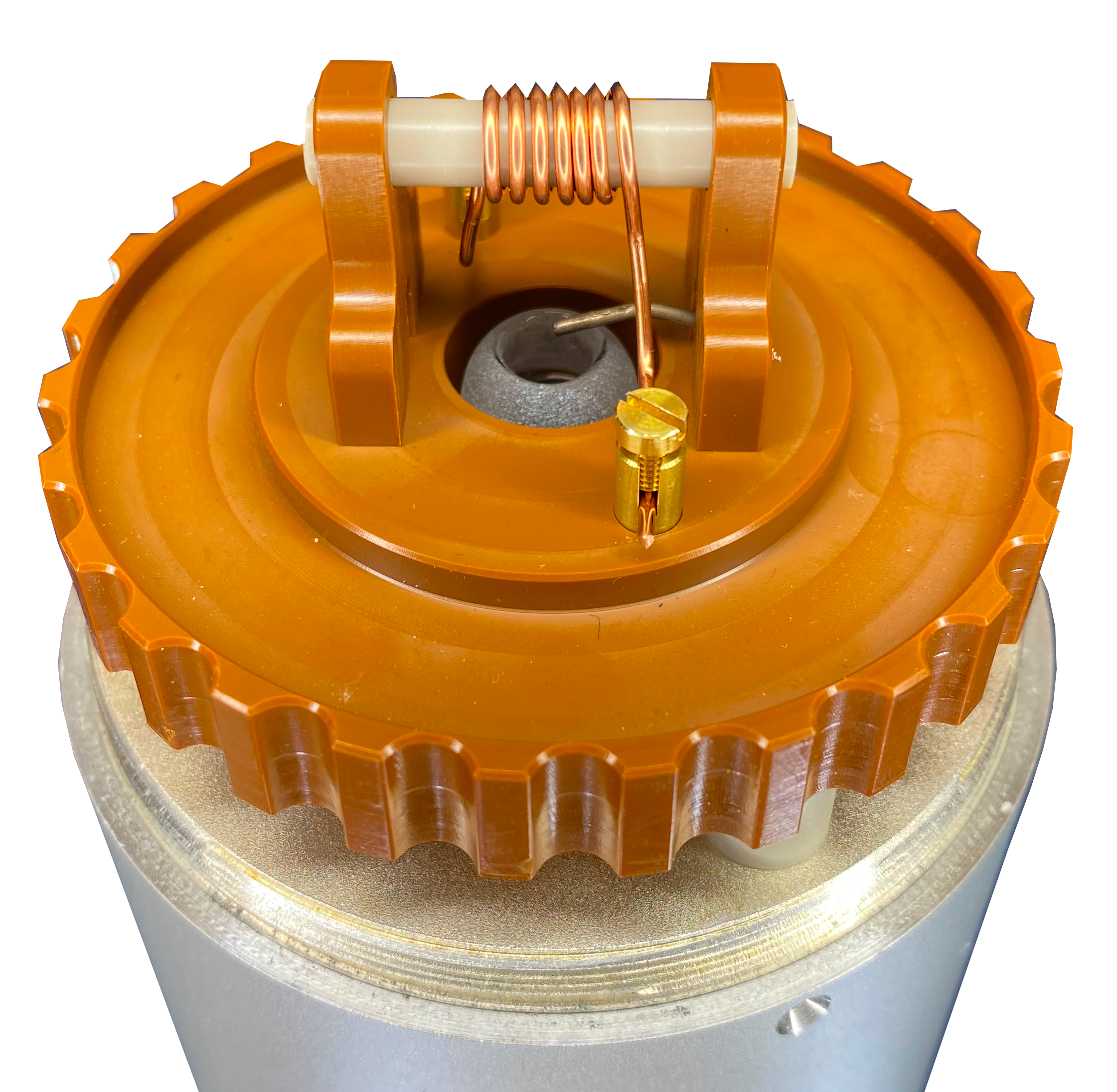

Static NMR
We build static wideline/broadband probes for NMR in fields of 100 to 700 MHz.
Options include:
- Single- or double-channel (multi-channel subject to discussion)
- Automatic tune/match
- Magnetic fields beyond 700 MHz
- Single- or double-axis goniometer (manual or automatic)
- Low-temperature probes down to liquid Helium
- High-temperature probes up to 800°C
- (extlink: https://eprobe.tech/ text: Please visit ePROBE for battery analysis technology solutions including probes, hardware, consultancy, and in situ/operando NMR accessories for solid-state/materials chemistry and battery research.)

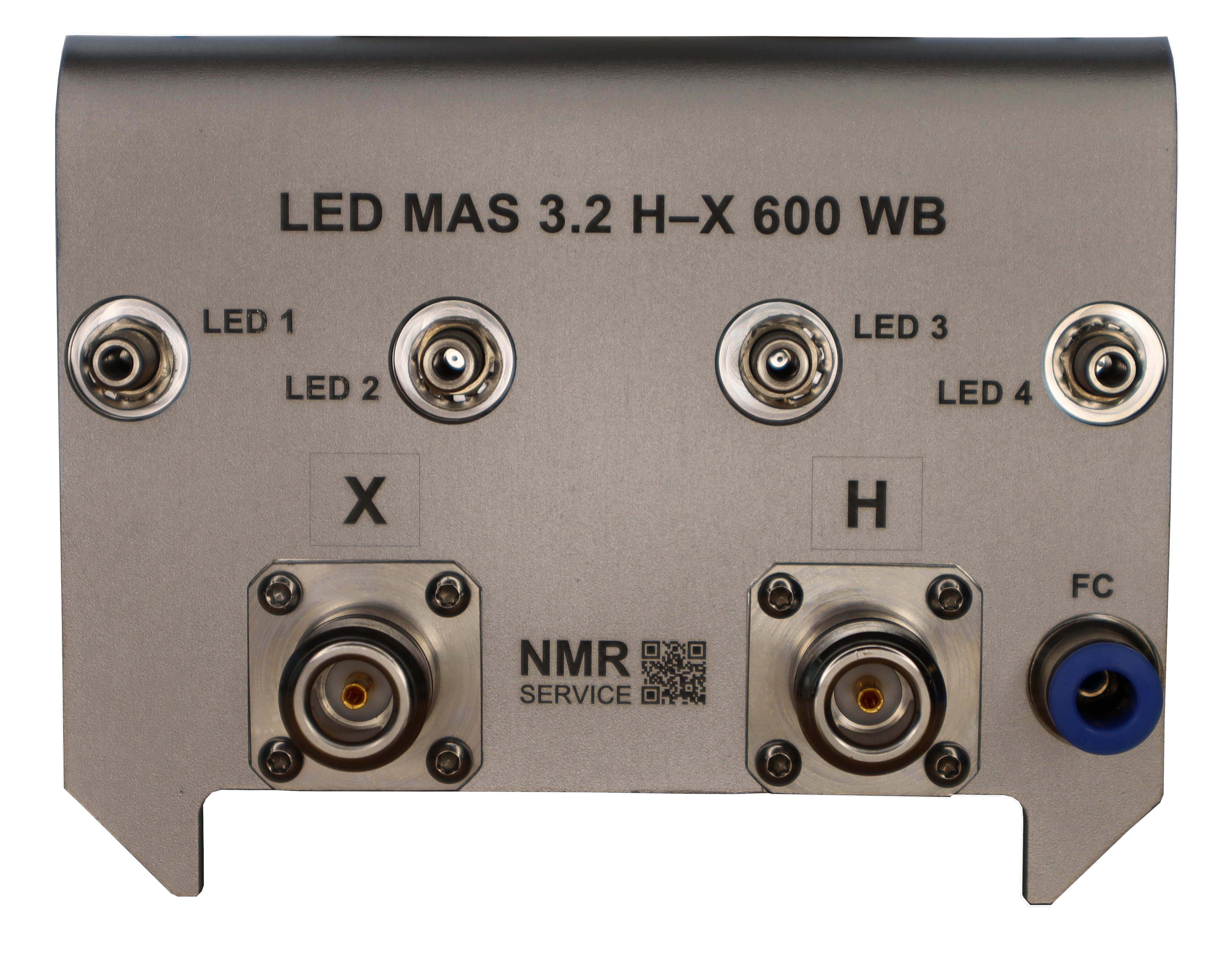

LED MAS 3.2 NMR
We build LED MAS 3.2 mm NMR probes that allow sample illumination while spinning; i.e. combining optics and NMR experiments.
- Fields: 300/89 to 600/89 MHz (wide-bore only)
- Single- or double-channel (H—X or F—X)
- Stator: Bruker-type DVT type 3.2 mm made of Vespel
- Suited/designed for Bruker-type 3.2 mm rotors (zirconia or sapphire)
- Eight holes inside the stator to hold up to four glass fibres
- Adapters for up to four glass fibres, e.g. 0.4 mm outer diameter
- Compatible with any light source, e.g. Thorlabs LED modules
- Compatible with our LED CONTROLLER
- Option: various MAS accessories incl. our rotor cap remover tool
- Option: automatic tune/match via eATM ROBOT

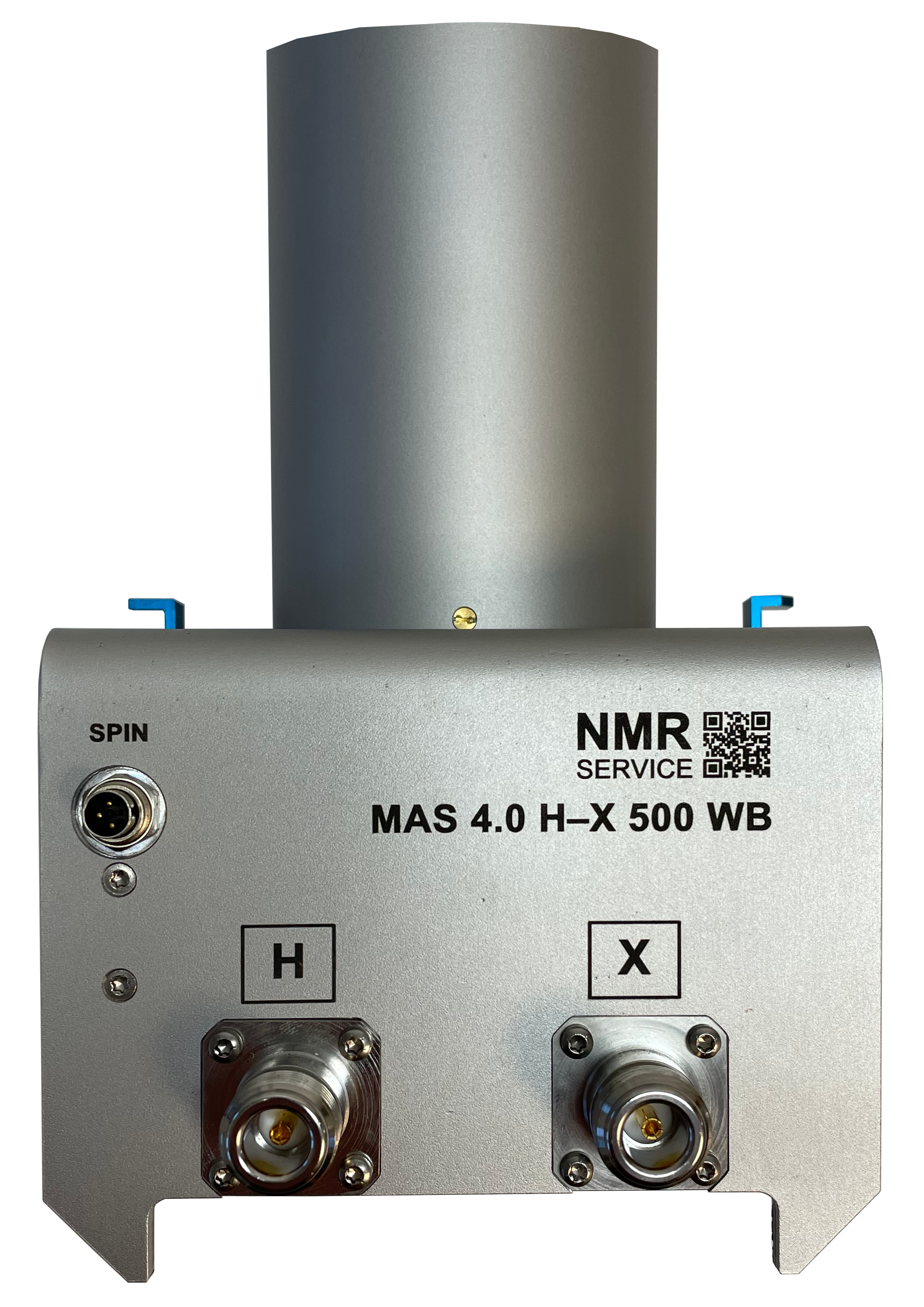

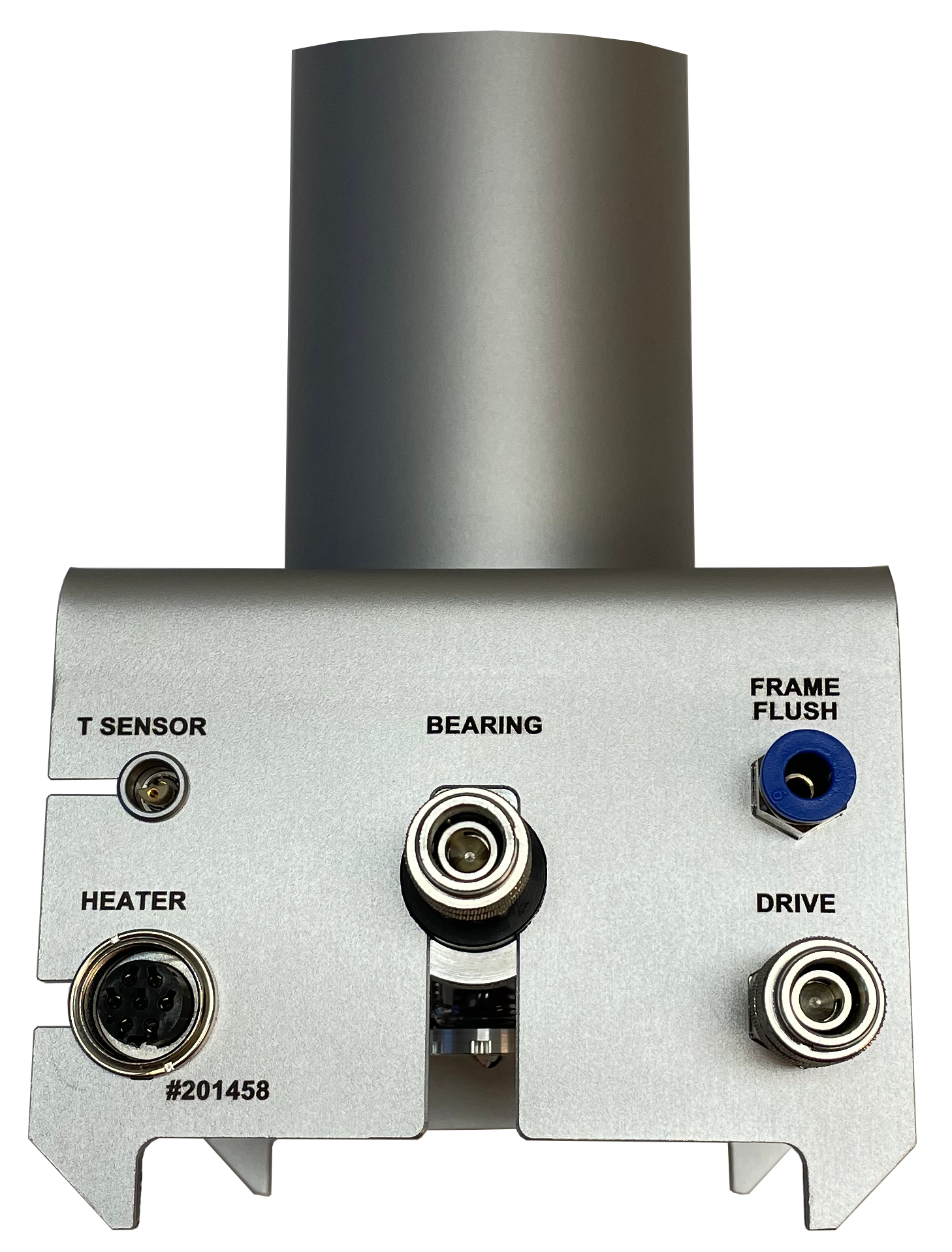

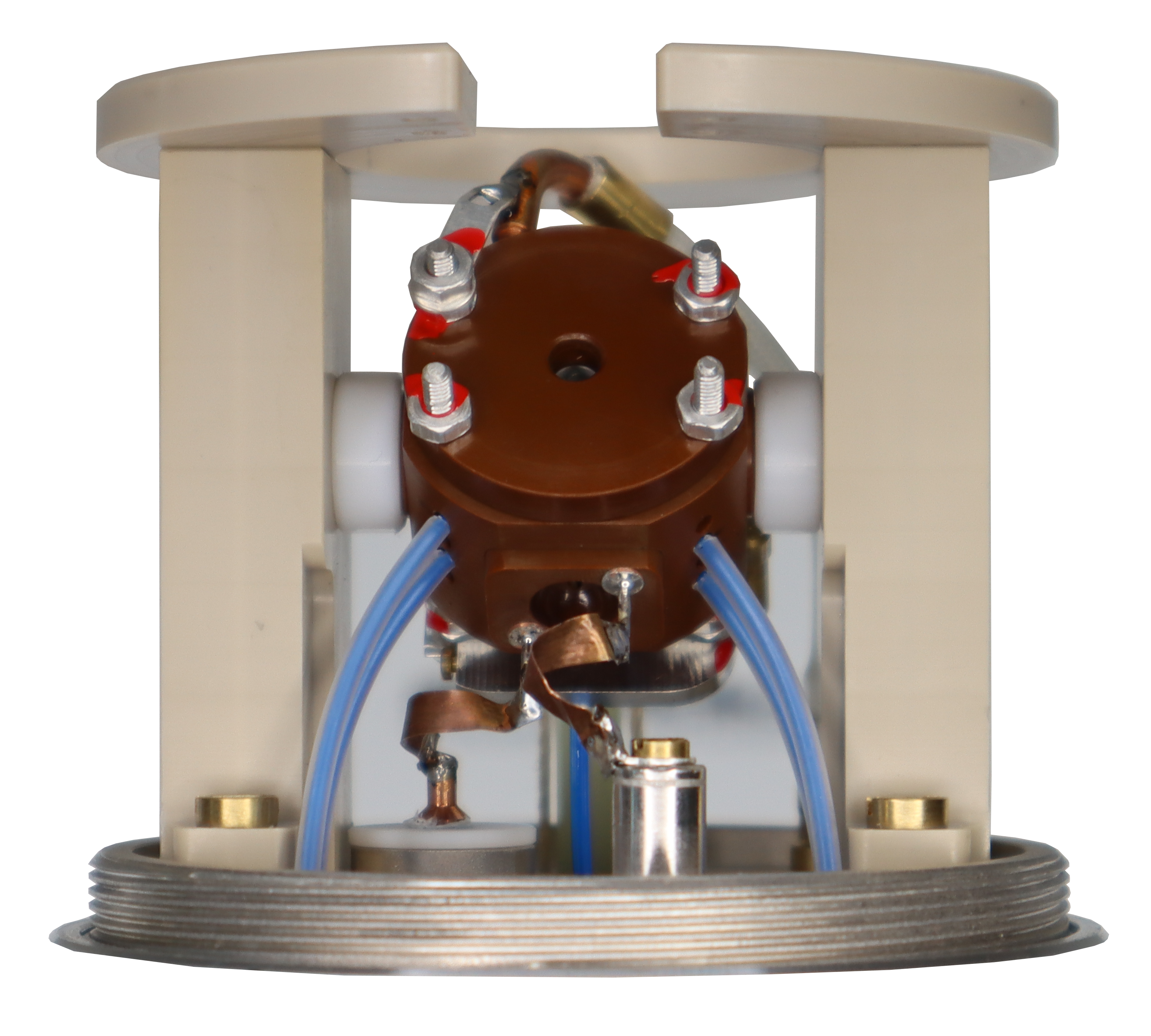

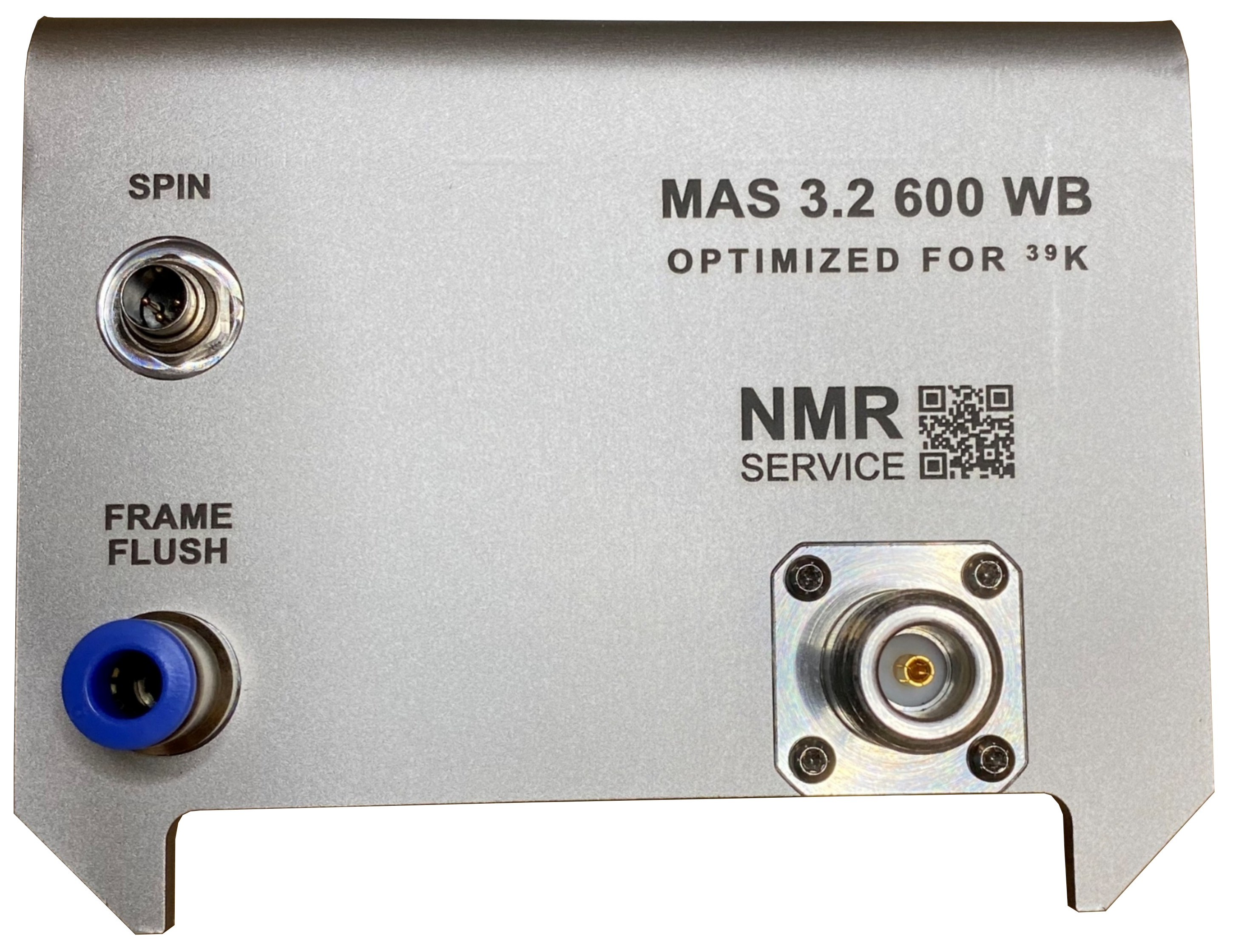

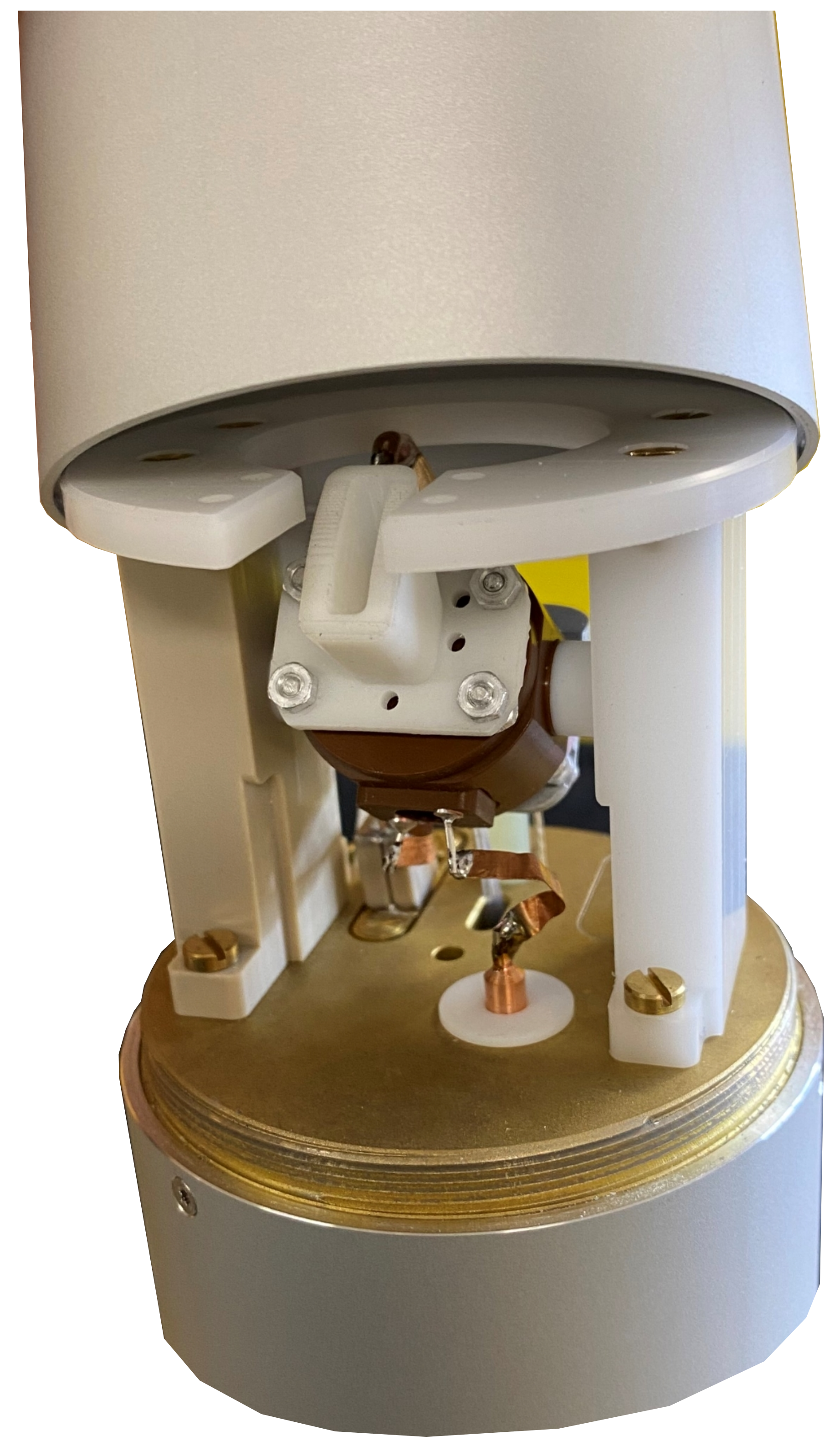

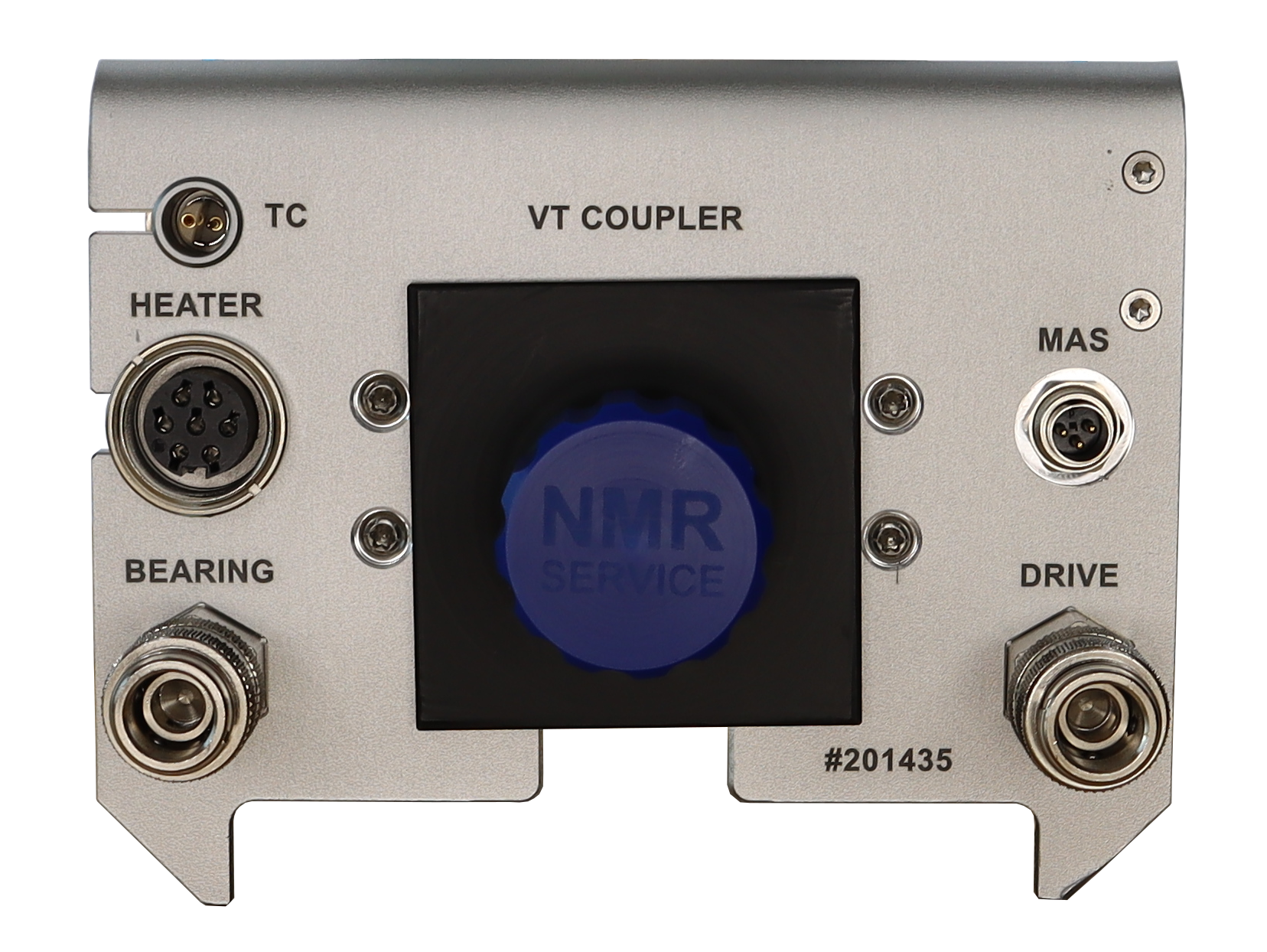

MAS NMR
We build MAS NMR probes for fields of 100 to 700 MHz.
Options include:
- Stator: Bruker DVT type 2.5, 3.2, 4.0, or 7.0 mm made of Vespel
- Stator: Phoenix NMR/Varian pencil type of any dimension
- Single- or double-channel (H—X or F—X)
- Triple-channel probes are subject to discussion
- Automatic tune/match
- Magnetic fields beyond 700 MHz
- LED MAS NMR probes combining optics and NMR experiments while spinning
- 3D printed stator/rotor modules

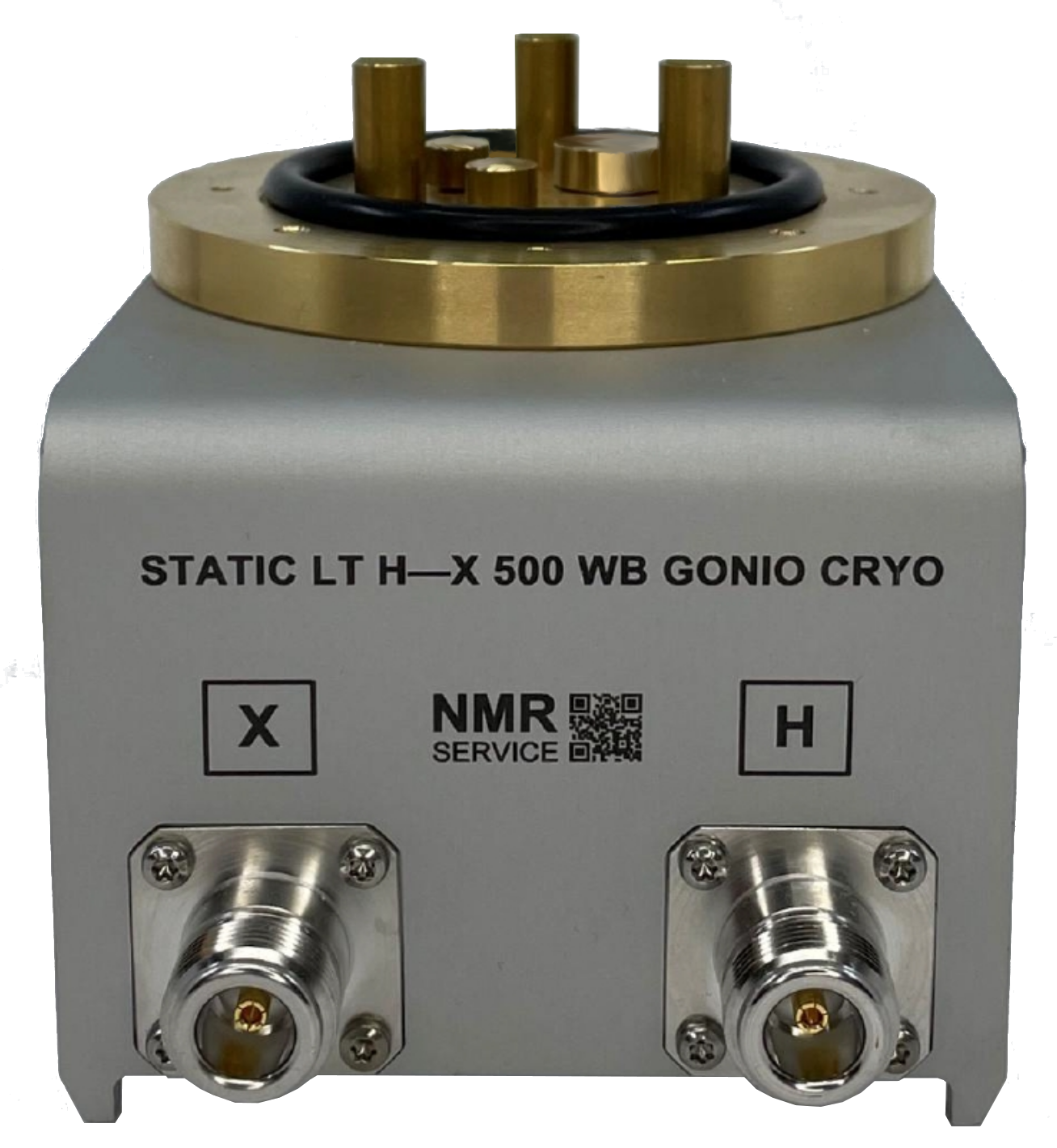

Low-temperature NMR
We build static low-temperature probes for NMR for any application.
Options include:
- Temperature range 1.5 to 425 K
- Temperature stability 0.1 K

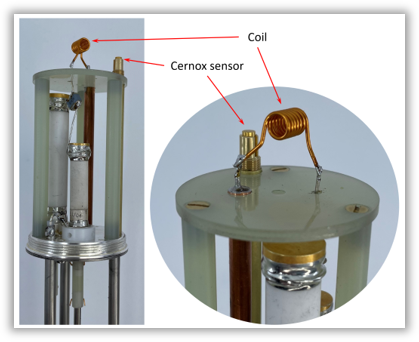

- Internal Cernox temperature sensor
- Compatible with any temperature controller, e.g. Lakeshore
- Suitable for any cryostat/magnet system including PPMS
- Suitable for cryogen-free cryostat/magnet systems
- Suitable for close-circle cryostat/magnet systems
- RF/tuning range optimised as specified by the user
- Wideline/broadband or ultra-wideline frequency range
- Single- or double-channel

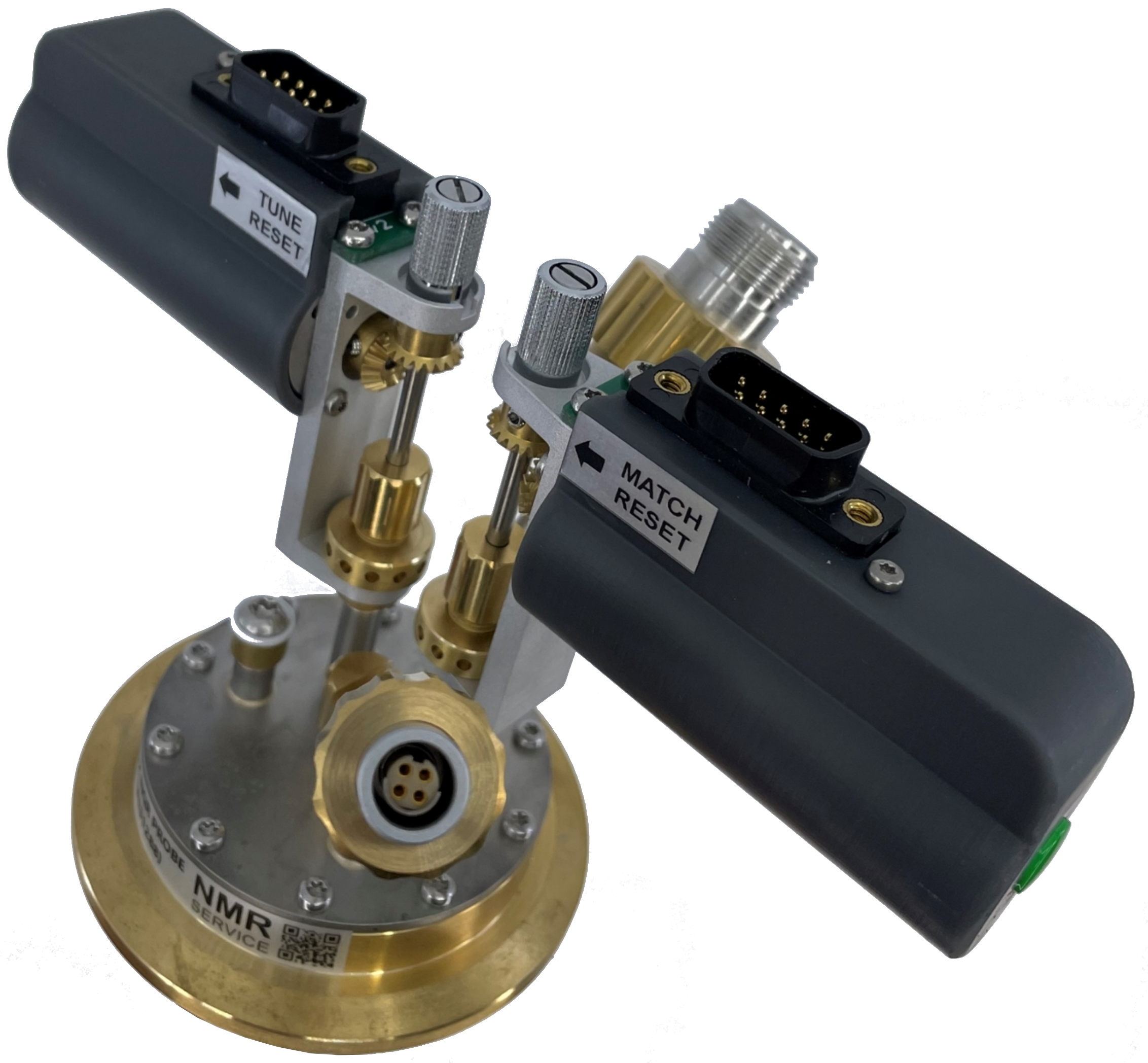

- Automatic tune/match

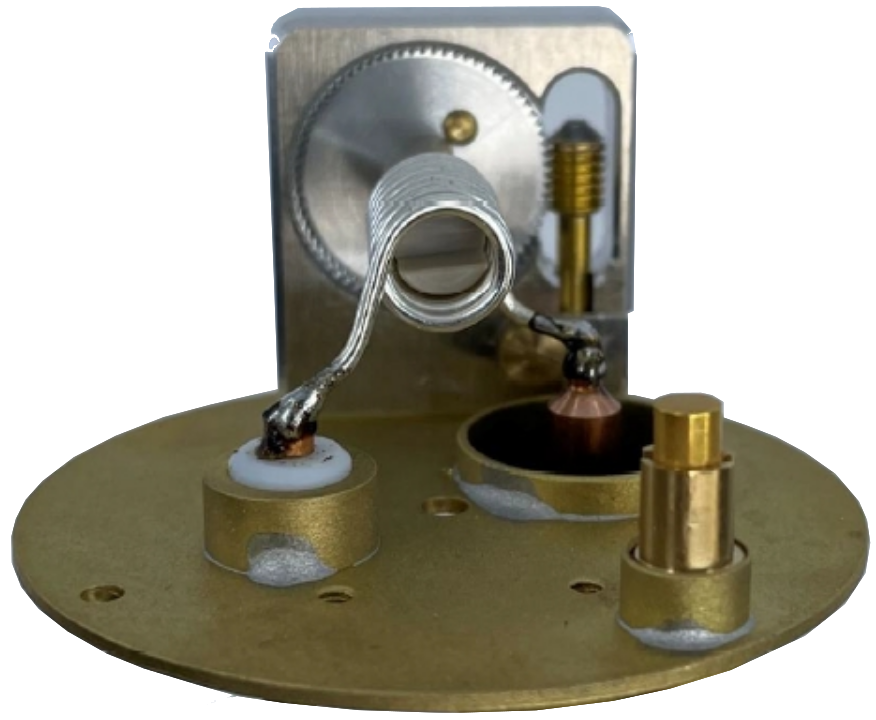

- Single- or double-axis goniometer (manual or automatic)

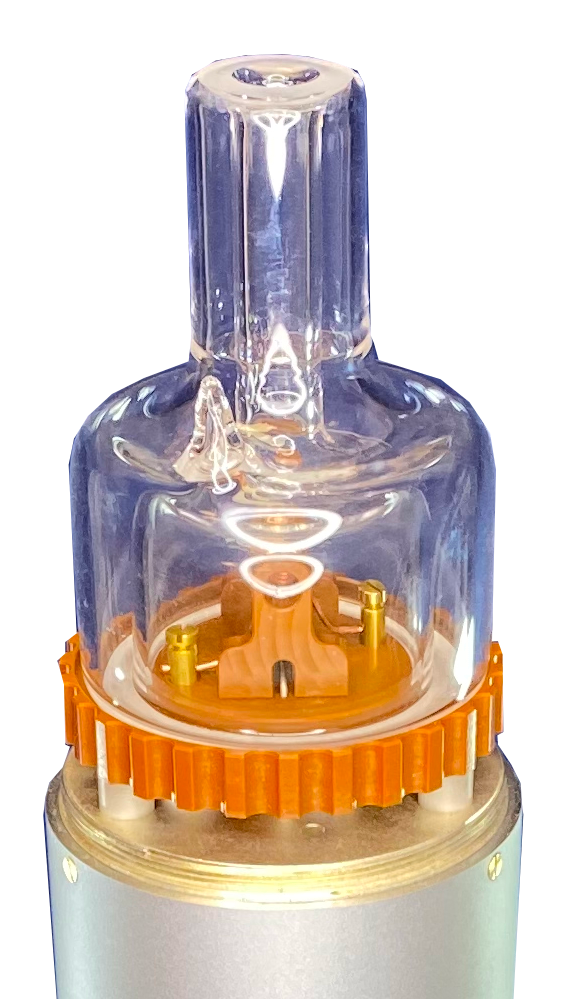

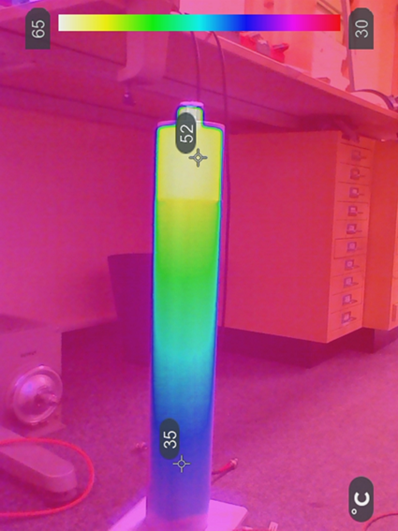

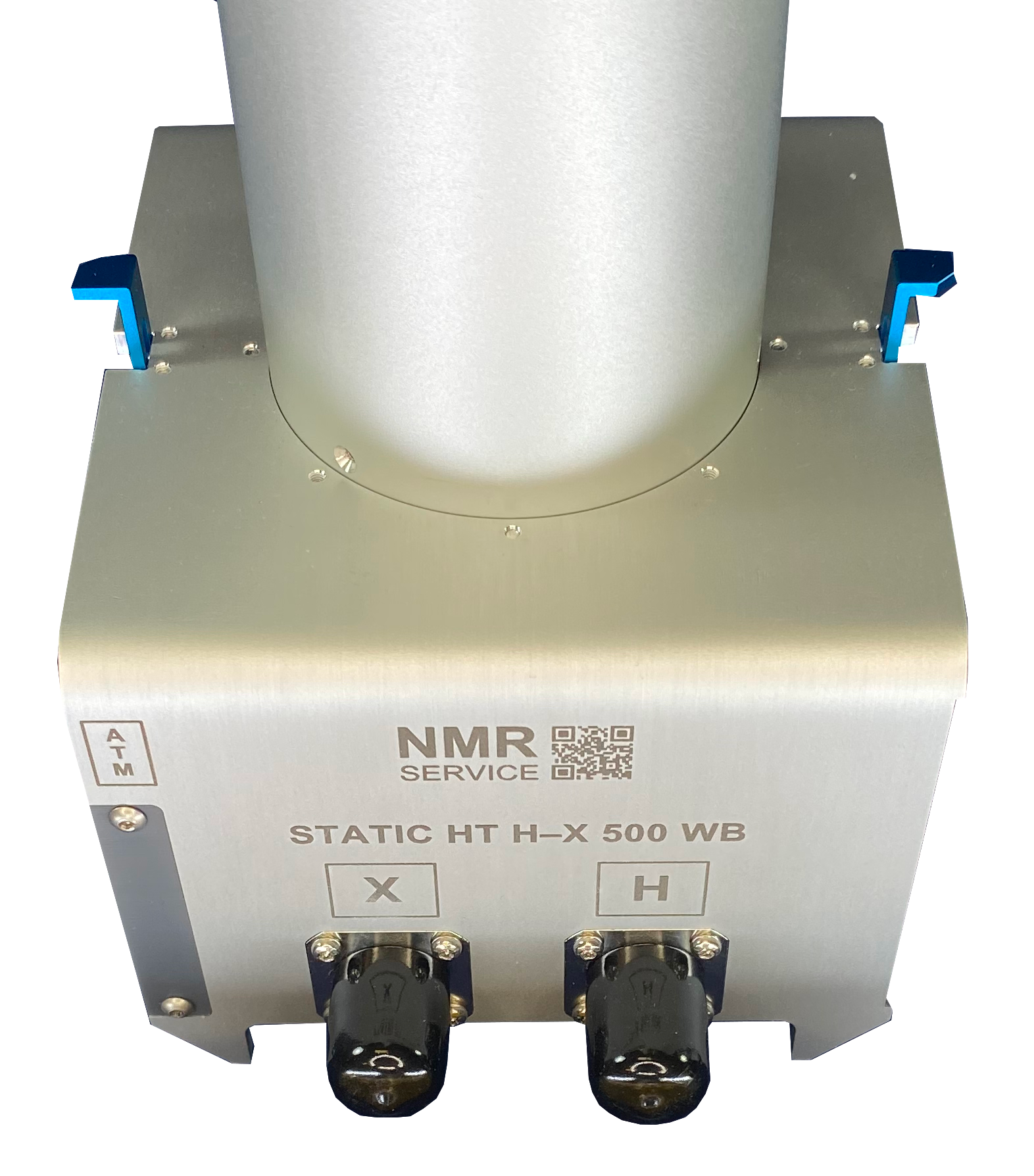

High/variable-temperature NMR
We build static high/variable-temperature NMR probes for various applications.
Options include:
- Temperature range -100 to 300°C
- Ultra-high temperature range up to 800°C (water-cooled sample area)
- Increased heater capacity, isolation, and temperature shielding
- Adaption of materials close to sample area (Vespel)
- Heating: dry air or nitrogen gas
- Cooling: cooled nitrogen gas (e.g. LN2 exchanger, BCU, etc.)
- Frame flush/cooling
- Compatible with any heater system, e.g. Bruker BVT or ours
- Compatible with any temperature controller, e.g. Bruker or ours
- Multiple internal temperature sensors
- Temperature sensor: Type N thermocouple (Bruker compatible; others possible)
- Heat gas exhaust with temperature sensor
- Suitable for any magnet and console
- Suitable for wide- and standard/narrow-bore magnets
- Single- or double-channel
- Automatic tune/match
Watch this space for your customised solution - contact us.
